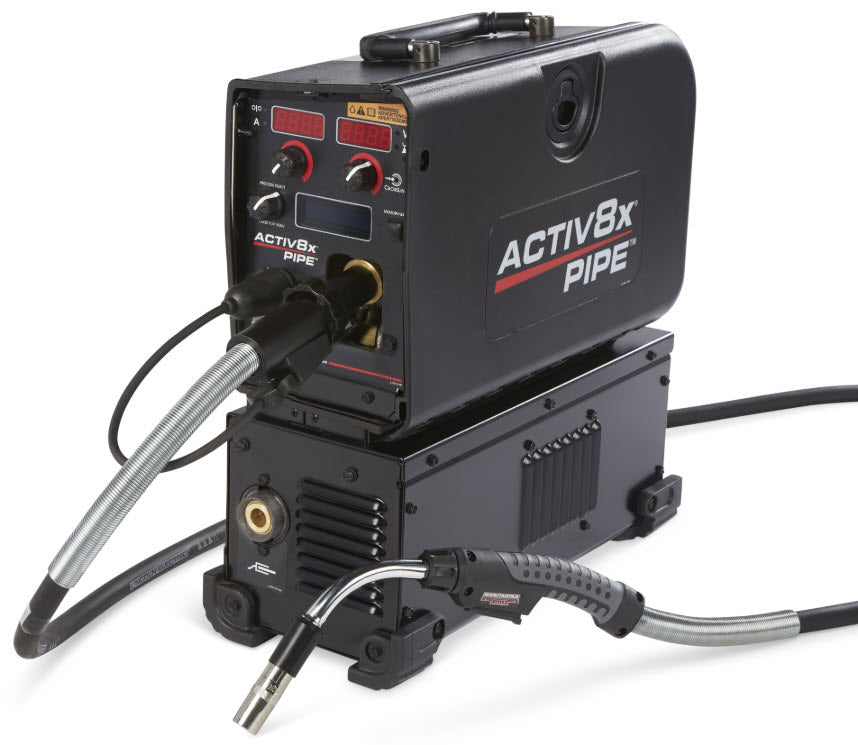

Lincoln® Activ8X® Pipe™ Wire Feeder & Magnum PRO Curve HDE 250 One-Pak® K4968-2

The Lincoln® Activ8X® Pipe™ Wire Feeder with Magnum® PRO Curve HDE 250 MIG Gun One-Pak® is an advanced field MIG wire feeder package that has pulsed MIG and STT® (Surface Tension Transfer®) capabilities. The advanced features of this feeder also include built-in CrossLinc® technology, which allows the Activ8X Pipe to communicate directly with a CrossLinc® equipped Lincoln welder through the welding leads, eliminating the need for costly remote-control cables. CrossLinc® remote control distance is limited only by the length of your welding cable leads. CrossLinc® allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld, without using expensive remote-control cables.

The Activ8X Pipe comes standard with patented Cable View™ technology, which continuously monitors cable inductance and adjusts the waveform to maintain consistent arc performance without the need for an additional voltage sensing lead. The Activ8X Pipe wire feeder has up to a 330 amp welding capacity. It features Lincoln’s MAXTRAC® wire drive system to ensure smooth wire feeding and excellent electrical contact with your welding gun.

Processes

STT® (Surface Tension Transfer®)

MIG (GMAW)

Pulsed MIG (GMAW-P)

Flux Cored (FCAW)

Applications
Construction & Field Erection
General Fabrication
Cross Country Pipe
Process Pipe
Structural Field Welding
Shipbuilding

Features:

Excellent Arc Performance – Perfectly Tuned for Pipe Welding
Optimized arc performance designed specifically for root-to-cap pipe welds, including STT Field and CV/Pulse modes for excellent sidewall fusion, back bead reinforcement, and overall bead profile.

Ultimate Control
Full control over the weld process can be easily made right at the wire feeder – no need to waste time walking back to the power supply for adjustments.

Rugged & Portable Design
Built on Lincoln Electric’s proven portable feeder platform, the Activ8X Pipe delivers a lightweight, yet dependable solution that can withstand the extreme conditions of field construction applications.

Straightforward Setup
From truck to ditch, setup is fast and easy. Connection between the Activ8X Pipe and power source is as simple as two standard quick-connect weld cables.

CrossLinc® with TVT™ technology
CrossLinc® uses the existing weld cable to communicate voltage control information between the feeder and Lincoln® CrossLinc® power source. This eliminates the need for a separate remote-control cable. TVT™ (True Voltage Technology) automatically compensates for voltage drops commonly associated with long welding cable runs.

Tachometer feedback
Ensures accurate wire feed speed

Trigger Interlock Switch
Provides operator comfort for long welds

Maxtrac® Wire Drive System
Heavy-duty cast aluminum wire drive system provides reliable feeding and durability

Replaceable and Flame Resistant Case
Protects internal components, easy to replace

Potted PC Boards
For moisture and corrosion protection

Split Wire Guide
Reduces birdnesting and allows for easy cleaning no-fuss wire guide alignment

Bright digital meters
For easy viewing even in bright sunlight

Included Tweco® style male connectors
Installed on input power cables.

Comes Complete With

Activ8X® Pipe™ advanced field wire feeder with CrossLinc® and Cable View™ technology

Magnum® PRO Curve HDE 250 MIG welding gun with .045″ dia. liner

.035/.045 drive roll kit for solid wire KP1696-1

15 ft. 2/0 work cable with clamp

Input power pigtails with male Tweco®-style cable connectors
