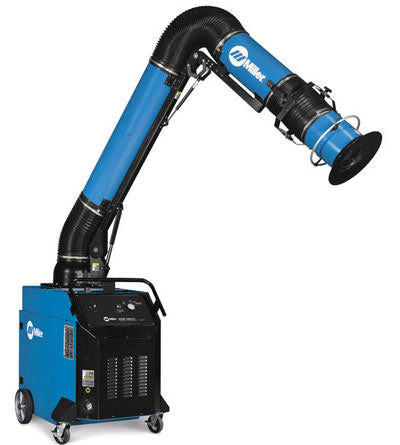

Miller® FILTAIR® Welding Fume Extractor Capture 5 (208/230V, 1-Phase) 951640

The Miller® FILTAIR® Capture 5 (208/230V, 1-Phase) welding fume extractor with 12 ft. arm features ZoneFlow™ technology that captures welding fumes up to five feet from the suction arm. Compare that to conventional fume extractors that can capture welding fumes only 18 inches from the suction arm. Miller’s exclusive FilTek™ XL Filters remove up to 95% of weld fume and are capable of removing the smallest of weld fume particulates. The Capture 5 is designed to exceed theACGIH recommended weld fume transportvelocity of 2000 feet per minute and moves 900 CFM (cubic feet per minute) of air.

Process

Welding Fume Extraction

Applications
Heavy EquipmentManufacturing
Fabrication
Maintenance andRepair Operations

Features

208/230V, 1-Phase input power

ZoneFlow™ Technology – The Capture 5 features completely new and exclusive ZoneFlow™ technology, which creates a much larger capture area than existing source-capture products and minimizes arm interactions. Capture 5 is far more effective than ambient fume extraction systems

ZoneFlow technology creates a negative pressure zone that extends the weld particulate capture distance – Air moving into the arm is still about 900 CFM. However, ZoneFlow technology also moves clean, filtered air out of the arm at approximately a 90 degree angle which creates a large negative pressure zone. This negative pressure zone forms a type of curtain that funnels the weld fume particulate towards the center of the arm, maximizing capture and extending the capture zone up to five feet deep and four feet wide.

Easy to Operate 12 ft. Extraction Arm – with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation.

Source Capture – capturing fume at the source is critical to maintaining a clean breathing zone for the welder and keeping the facility clean.

Less Arm Movement – Designed to capture fume in larger weld areas while minimizing interactions with the arm. Providing better protection and more welding.

MERV 15-16 Filter Rating – Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.

Nanofiber Technology – Nanofibers use an exclusive media blend that features a surface layer of nanofibers about 1000 times thinner in diameter than a human hair.

Cleanable Filter with Automatic Cleaning – The FILTAIR Capture 5 automatically cleans the FilTek XL filter when the extractor is turned off. Pulse cleaning cycle cleans the filter from the inside out. Weld fume particulate is removed from the filter and safely deposited in the particulate disposal drawer Filter cleaning gauge ensures the highest airflow for consistent fume extraction throughout the life of the filter
