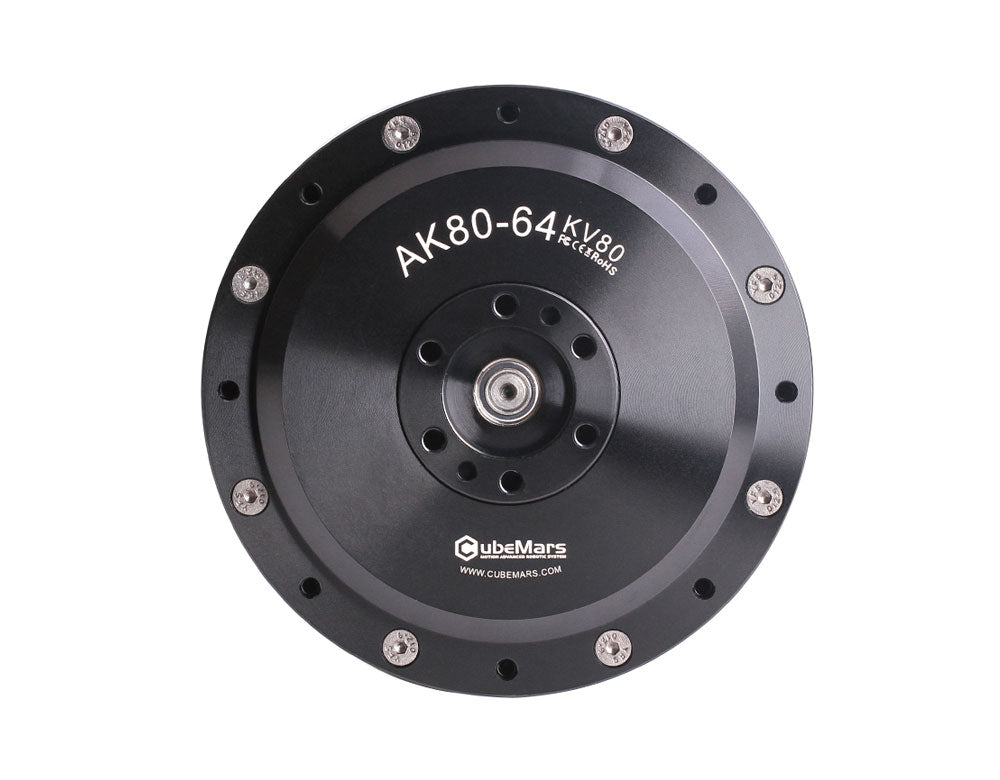

T-Motor AK80-64 6-8S Legged Robot Power w/Driver Board Free Shipping Discounts

MPN: AK80-64 DB

Manufacturer: T-Motor

**We are not importing more of this T-Motor product at this time. The current webstore inventory is all that we have available for shipment.

• Highly Integrated with encoder and driver
• Rated Torque 48Nm
• Peak Torque 120Nm
• MIT control mode

The AK80-64 actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque. Utilizing a portable drive solution, the AK80-64 Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to reach the target efficiently.

CubeMars offers highly customizable motor modules.

AK80-64 Actuator Specifications:
– Operating Voltage: 48V
– Rated Torque: 48Nm
– Rated Speed: 40rpm

For complete products specs, see the T-Motor website.
