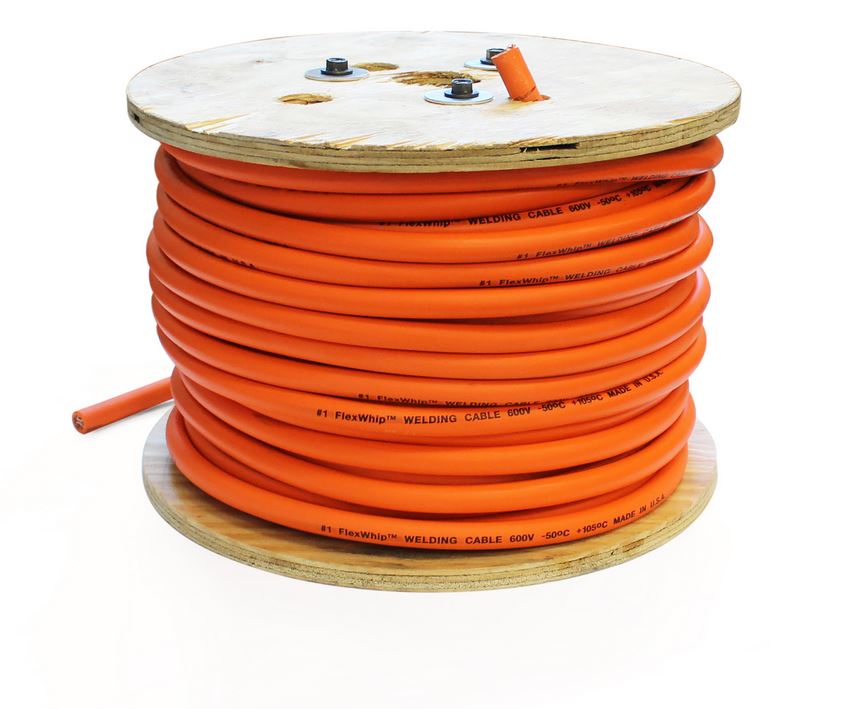

Welding Cable Manchester

Color:
Orange

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
temporary power, flexible cable, 600 volt cable, copper cable, welders cable, hurricane cable, etc.

Features:
Excellent flexibility to last longer in flex applications. Abrasion-resistant. Resists oils and solvents. Rated -50ºC for use in cold environments. Weather-resistant. Sunlight-resistant. Ozone-resistant. Safety-colored for high visibility. Assured longer service life, saving money in replacement costs, maintenance cost and downtime.

Jacket:
Temperature range: -50ºC to +90ºC

Standards:
UL Listed
CSA Certified
MSHA Approved
Meets UL Vertical Flame Test per UL 854
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172 Class M

Specifications*:

Size: 2/0
Conductor Strand: 3300/34
Outside Diameter: 16.00 mm / 0.630 inches
Weight: 0.480 lbs per ft
Current Amps: 300 (For 600 Volt In-Line Applications)

*Data provided on this page is subject to change based on different manufacturers variances.
